When It Comes to Brackets, Guessing Isn’t a Measurement

As a general starting point, choose a bracket with a horizontal support arm at least two-thirds the depth of the unsupported shelf or countertop overhang. The final size also depends on load, spacing, mounting structure and bracket type.

Choosing a bracket isn't just a matter of picking one that looks right. The size you need depends on the depth of the surface, how much weight it will carry, where the brackets can be mounted and the type of support your project requires.

If you're asking “what bracket size do I need”, start by measuring the unsupported part of the shelf, countertop or other surface. That gives you a useful starting point before you compare bracket options.

Start With the Depth of the Surface

As a general rule of thumb, the horizontal support arm should extend beneath at least two-thirds of the unsupported shelf depth or countertop overhang.

Minimum support-arm length = unsupported depth × 0.67

For example, a 12-inch-deep unsupported shelf would give you:

12 × 0.67 = 8.04 inches

So, as a starting point, you'd look for a bracket with at least an 8-inch support arm. If your calculation falls between available bracket sizes, round up to the next size rather than down.

This is only a starting point, not a universal sizing formula. Surface material, expected load, bracket spacing, mounting structure, fasteners and installation method can all affect the support required. Always check the specifications and test data for the particular A&M Hardware bracket you're considering.

Look at What the Bracket Will Support

The same bracket size may not be appropriate for every application.

A shelf holding lightweight items has different demands from a countertop, work surface or other installation that will carry substantial weight. Where the weight sits matters, too. A load concentrated towards the outer edge can place different demands on the support than one positioned closer to the wall.

Before choosing a bracket, consider:

• Unsupported shelf or countertop depth

• Expected load and how it will be distributed

• Bracket spacing

• Surface material

• Available mounting structure

• Fasteners and installation method

These details help you determine whether the basic two-thirds measurement is suitable for your project or whether you need to look at a different bracket configuration.

Choose the Bracket Type for the Application

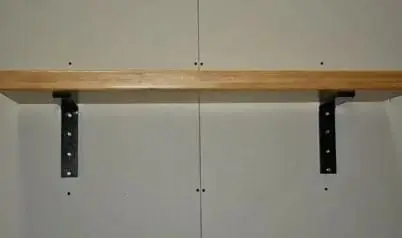

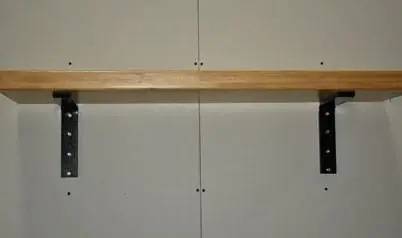

Size isn't the only decision. The bracket style needs to suit the installation. A visible shelf bracket may make sense where the hardware can remain exposed.

A concealed bracket may be preferable when you want the support hidden beneath a shelf or countertop. Other applications may call for a different configuration altogether. Start with how the surface will be used and installed, then narrow down the bracket style and size.

Don't Forget the Mounting Surface

A bracket is only part of the support system. The surface you're mounting it to and the fasteners you use also matter.

Before ordering, identify where the bracket will be attached and what structure is available at those points. Wood or steel studs, concrete and other mounting surfaces can require different fastening approaches.

There's little value in choosing a bracket based on its dimensions if the mounting arrangement can't provide the necessary support.

Measure First, Then Compare

You don't need to guess your way through bracket sizing. Measure the unsupported depth, multiply it by 0.67 for a general starting point, and then consider the load, spacing, mounting structure and bracket type. If the calculated support-arm length falls between available sizes, start with the next size up.

At A&M Hardware, we offer different bracket configurations for different applications, so the goal isn't simply to find the largest bracket that fits. It's to find the option that makes sense for the surface, load and installation.

Frequently Asked Questions

How do I know what size bracket to choose?
Measure the unsupported depth of the shelf or countertop and use two-thirds of that measurement as a general starting point for the support-arm length. Then check the bracket's specifications against the load and installation.

What is the two-thirds rule for brackets?
It means the horizontal support arm should generally extend beneath at least two-thirds of the unsupported shelf depth or countertop overhang. It's a starting point, not a universal sizing requirement.

Should the bracket be the same size as the shelf?
No. The support arm generally needs to cover at least two-thirds of the unsupported depth, but the final bracket size depends on the application and installation conditions.

Does a larger bracket support more weight?
No. Not automatically. Load capacity depends on the specific bracket design, mounting method, fasteners, spacing and surface being supported.

What should I measure before buying a bracket?
Measure the unsupported depth and available mounting area. Also consider the expected load, how it will be distributed and where the brackets can be securely attached.



Authored by: A&M Hardware | Posted: 08/12/2026
